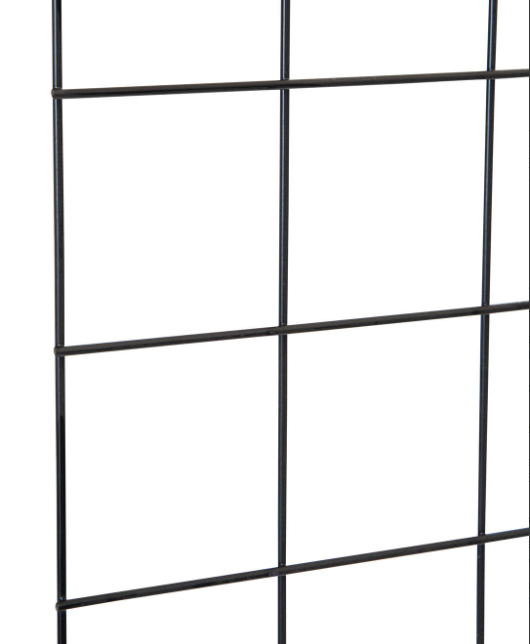

Welded Wire Mesh
Ruiqi Wire Mesh specialize in the production and supply of high-quality, flawless welded wire mesh products, in the form of rolls or sheets. And we offer a variety of different materials for customers to choose from, they are mild steel uncoated, hot-dip galvanized, Eco-PVC coated, Powder coating and 304 & 316L stainless steel. Our welded wire mesh products are with firm welding, square holes, flat mesh roll and uniform surface coating, at competitive price, we will be your best choice.
Applications:
- Suitable for creating bird aviaries, rabbit cages, chicken coops, dog cages and badger cages to keep your pet safe and also preventing vermin animals(mouse, mice, snake, rodents) from entering the place where protection is needed;
- Partitions and enclosures, machinery and window guards, ventilator guards, tree guards, shelving, racking and grills;
- Security fencing to secure our property;
Quality
- Firm welding for sturdy quality fence (no loose wire and break mesh);
- Very straight wire for a perfect square holes;
- Our mesh is flat, not wave or uneven;
- High quality galvanized and Eco-PVC coating for maximum corrosion resistance;
- Neat and safe package for easy transportation and handling.
Custom welded wire mesh services
- Coil slitting
- Flush cut edges
- Random cut edges
- Precision shearing
- Straightening and flattening
Welded Wire Mesh Rolls
| Mesh |
Wire diameter |
| mm |
inch |
mm |
gauge |
| 6.35 x 6.35 |
1/4 x 1/4 |
0.55, 0.63, 0.70 |
24, 23, 22 |
| 9.5 x 9.5 |
3/8 x 3/8 |
0.70, 0.80, 1.00 |
22, 21, 19 |
| 12.7 x 12.7 |
1/2 x 1/2 |
0.70, 0.80, 1.00,1.60 |
22, 21, 19,16 |
| 12.7 x 25.4 |
1/2 x 1 |
1.00, 1.60 |
19, 16 |
| 16 x 16 |
5/8 x 5/8 |
0.70, 1.00, 1.20 |
22, 19, 18 |
| 19 x 19 |
3/4 x 3/4 |
1.00, 1.20, 1.60 |
19, 18 , 16 |
| 25.4 x 25.4 |
1 x 1 |
1.00, 1.60, 2.00,2.50 |
19, 16, 14,12 |
| 25.4 x 50.8 |
1 x 2 |
1.60, 2.00, 2.50 |
16, 14, 12 |
| 50.8 x 50.8 |
2 x 2 |
1.60, 2.00, 2.50 |
16, 14, 12 |
| 50.8 x 76.2 |
2 x 3 |
1.60, 2.00, 2.50 |
16, 14, 12 |
| 50.8 x 101.6 |
2 x 4 |
1.60, 2.00, 2.50 |
16, 14, 12 |
Roll Width in inch: 24", 36", 40", 48", 60", 72", 80".
Roll length in meters: 5m, 10m, 15m, 25m, 30m.
Welded Mesh Panels / Welded Wire Mesh Sheets
| Mesh |
Wire diameter |
Sheet size |
| mm |
inch |
mm |
ft |
| 25 x 25 |
1 x 1 |
2.00, 2.50, 3.00 |
3 x 6, 4 x 8, 4 x 10 |
| 50 x 50 |
2 x 2 |
2.50, 3.00, 4.00 |
3 x 6, 4 x 8, 4 x 10 |
| 75 x 75 |
3 x 3 |
3.00, 4.00, 5.00 |
3 x 6, 4 x 8, 4 x 10 |
| 100 x 100 |
4 x 4 |
3.00, 4.00, 5.00 |
3 x 6, 4 x 8, 4 x 10 |
| 150 x 150 |
4 x 4 |
3.00, 4.00, 5.00 |
3 x 6, 4 x 8, 4 x 10 |
|
|
|
