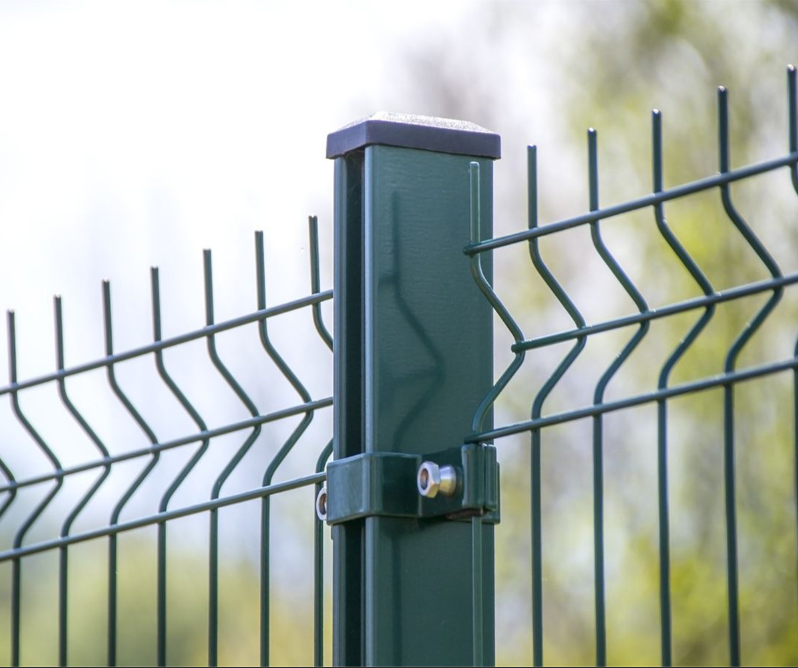

3D panel fence is a type of welded wire mesh which has V-shaped strengthen bending curves. It is made of high quality low carbon steel galvanized wire, then will be hot dipped galvanized,powder coated or pvc coated. It looks modern and attractive. Mainly used for security protection in construction site, residential building, sports field, warehouse, highway or airport service area, railway station, etc.
Benifit of using 3D panel fence：
●Attractive and cost effective solution.
●Panels have a high level of rigidity
●Qucik and Easy install
●Various color choice.
Specification:
The height are available in a range of heights from 630mm till 2430 mm.
The panels have vertical barbs of 30 mm that can be placed at the top or at the bottom.
The horizontal reinforcements give the panels extra rigidity.
The popular wire diameter are 4.0mm and 5.0mm, mesh holes are 50×100mm,50×200mm,others are available.
Posts are manufactured from steel tubular section with threaded inserts for fixing the steel mesh clips. Additional fixings are provided to accommodate stepping of panels where the fence is installed on a gradient.
The general post section are 40×60mmx1.20mm&1.50mm
